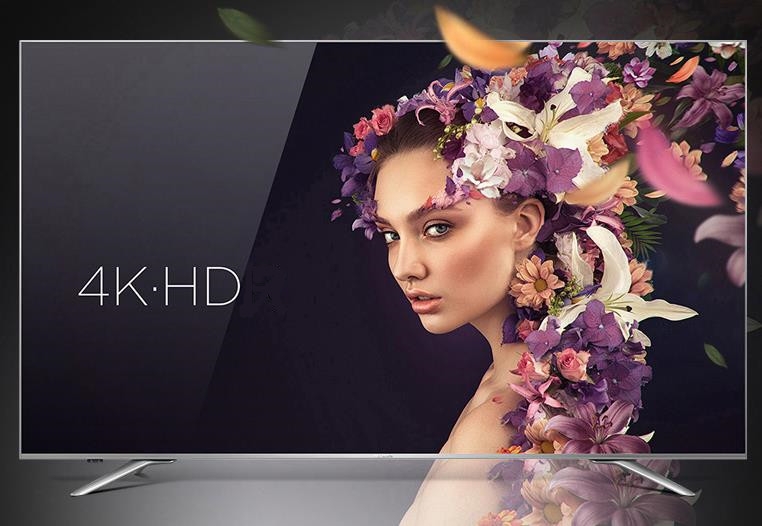

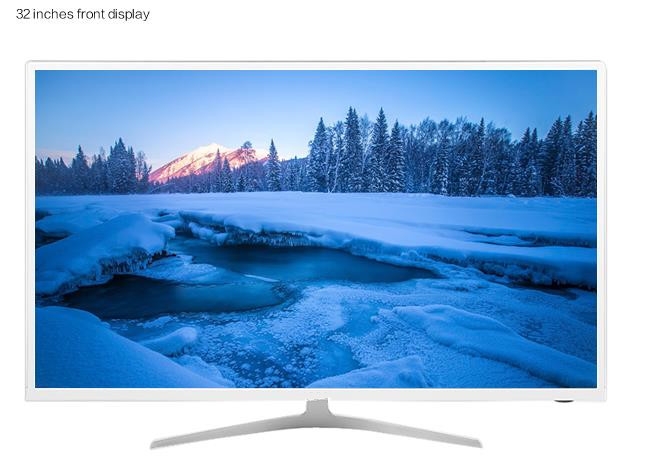

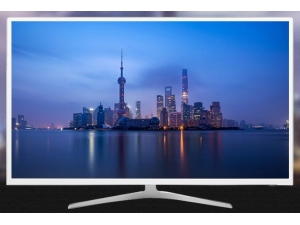

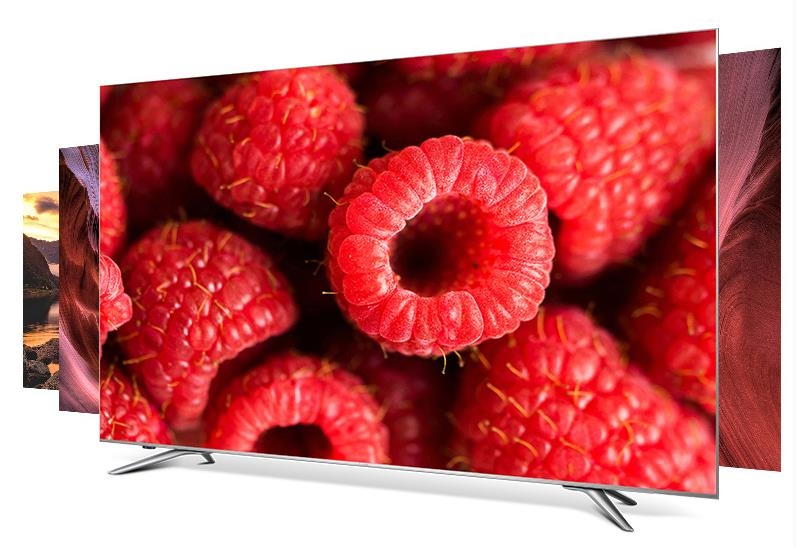

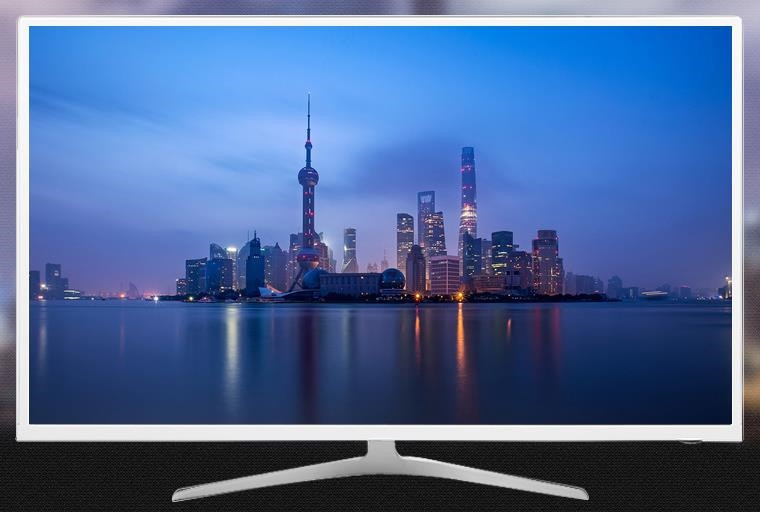

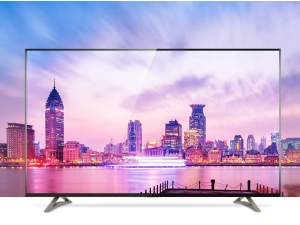

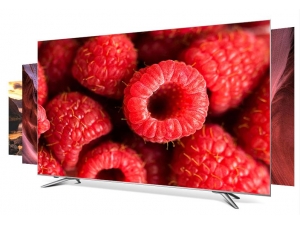

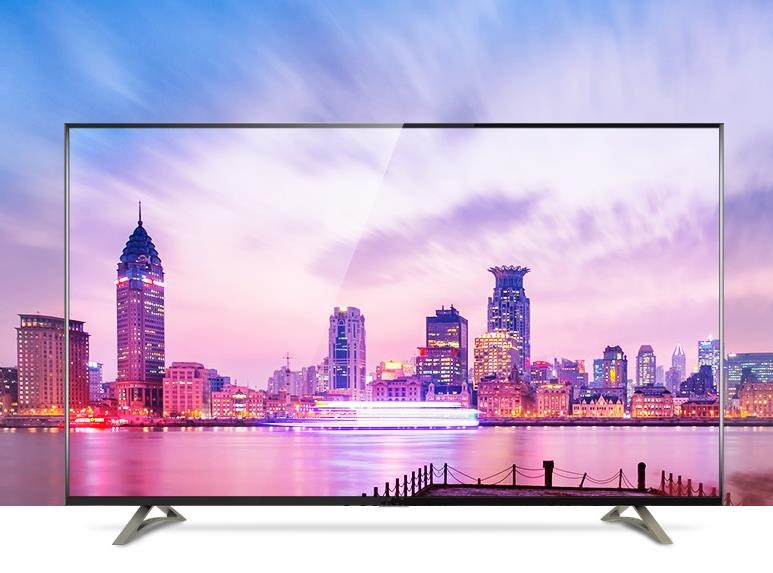

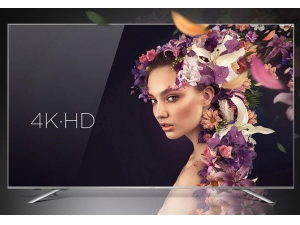

32" Ultra HD 4k resolution with capacitive touch screen and high brightness medical science monitor
- Screen Size:32"
- Interface Type:D-Sub

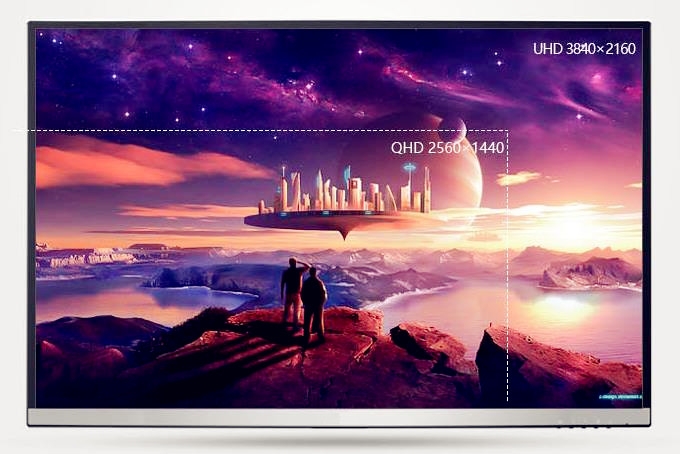

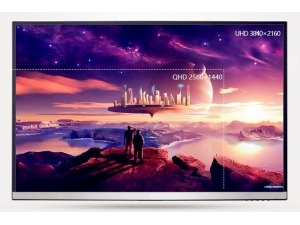

- Resolution:3840(H) x 2160(V)
- Brand Name:KIOSK
- Model Number:KSK-H320UHD-CAP
- Place of Origin:Guangdong, China (Mainland)
- Product name:32" Ultra HD 4k resolution medical science monitor
- Response Time (Typical):12ms (Gray to Gray)
- Screen Size (Active Area):31.5" (708.48(H) x 398.52(V) [mm])
- Aspect Ratio:16:9
- touch screen: capacitive touch
High Brightness and High Contrast Ratio
LED Backlight System
Multi-Picture display: Normal, PiP, PBP, 4P
14-bit LUT (Look Up Table) processing
DICOM Standard GSDF included (DICOM Part 14 Compliant)
DICOM Clear, Blue Mode support
Variable Gamma and DICOM (Color Temp) mode
|
Key Specifications KSK-H320UHD-CAP monitor |
|
|
Response Time (Typical) |
12ms (Gray to Gray) |
|
Screen Size (Active Area) |
31.5" (708.48(H) x 398.52(V) [mm]) |
|
Aspect Ratio |
16:09 |
|
Number of Pixels |
3840(H) x 2160(V) |
|
Pixel Pitch (mm) |
0.1845(H) mm x 0.1845(V) [mm] |
|
Displayable Colors |
1.07 billion (10-bit) |
|
Brightness (Typical) |
350 cd/m2 |
|
Display Mode |
AHVA or AMVA |
|
Contrast Ratio |
1000:01:00 |
|
Viewing Angle (H/V°) |
178/178 |
|
Touch screen |
P-CAP |
|
power |
|
|
Consumption |
105.8W or 59.8W |
|
Input |
AC 100-240V, 50-60HZ, 6-3A |
|
Signals |
|
|
Output option |
4K (HD, 3G, 6G) SDI (BNC) x1 |
|
Input |
Display Port(1.2) x1, HDMI(1.4) x4, HDMI(2.0) x1, RGB x1, Audio x1 |
|
USB (up/down) |
USB 2.0 x1/USB 2.0 x2 |
|
Output |
DP(1.2) MST or Daisy chain x1, Audio x1 |
|
Environment |
|
|
Temperature |
Operating: 0° C ~ +40° C, Storage: -20° C ~ +60° C |
|
Humidity |
Operational: Ta = 40 °C , 85% RH; Storage MAX 85% RH, Ta = 40 °C |
|
Altitude |
Operational: 0 ~ 16,400 feet (5,000m); Storage/Shipment: 0 ~ 40,000 feet (12,192m) |
|
IP Rating |
|
|
Front |
IP65 |
|
Top |
IPX2 |
|
Physical Characteristics |
|
|

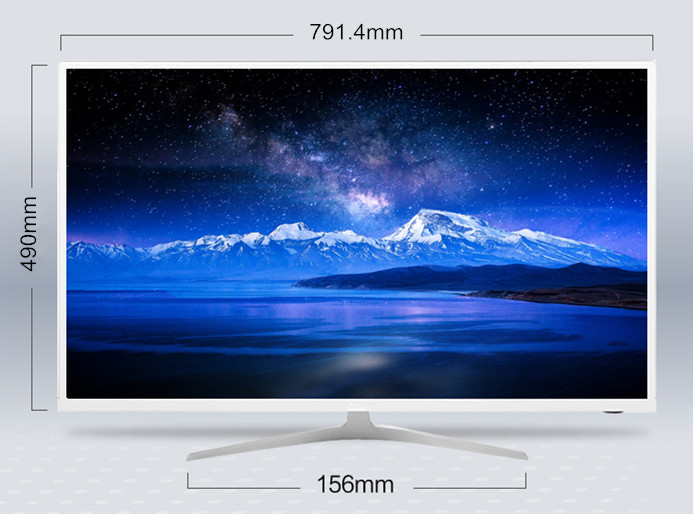

Dimensions (W x D x H) |
791.4(W) x 490(H) x 75(D) mm |
|
Weight |
11.2 kg |
|
Features |
|
|
Grayscale Performance |
14-bit LUT (Look Up Table) processing |
|
DICOM |
Standard GSDF included (DICOM Part 14 Compliant), Clear, Blue Mode support |
|
Certifications (option>100pcs) |
CE MDD 93/42/EEC (EN60601-1:2006; EN60601-1-2:2007), RoHS II |
|
Warranty |
3 years |
32 inch KSK-H320UHD(screen without touch function)
32 inch KSK-H320UHD-CAP(capacitive touch screen)
32 inch KSK-H320UHD-HL(screen without touch function but high brightness 700cd/m2)
32 inch KSK-H320UHD-HL-CAP(capacitive touch screen and high brightness 700cd/m2)
