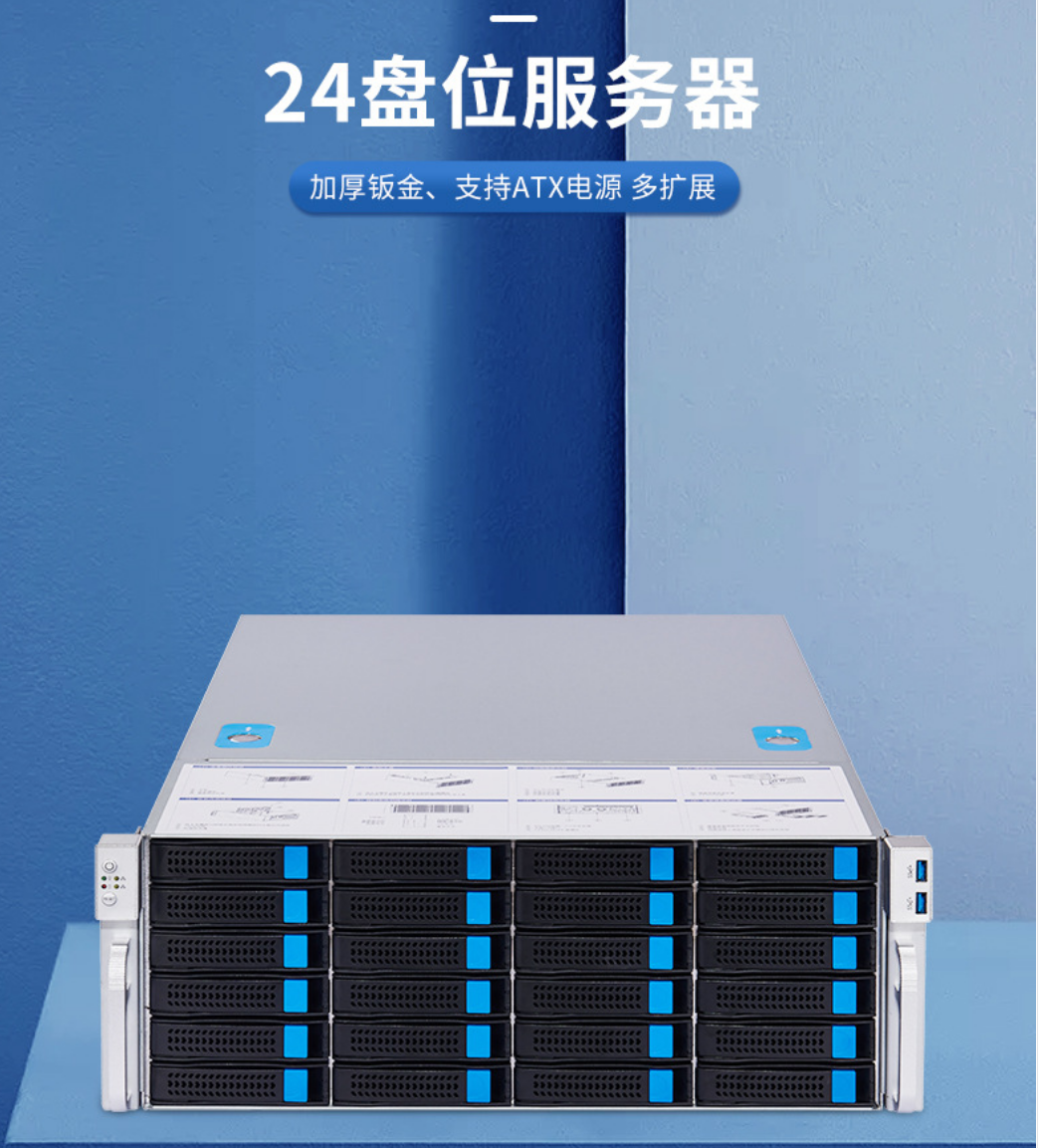

4u 24 disk storage server S6424-F

• Hardware specifications and software functions
• Category basic parameters
• Motherboard chipset Intel single -road chipset
• Processor type Intel G5400 dual -core 3.7G processor
• Memory capacity is standard 8G DDR4 memory * 1
• System disk 128g MSATA disk *1

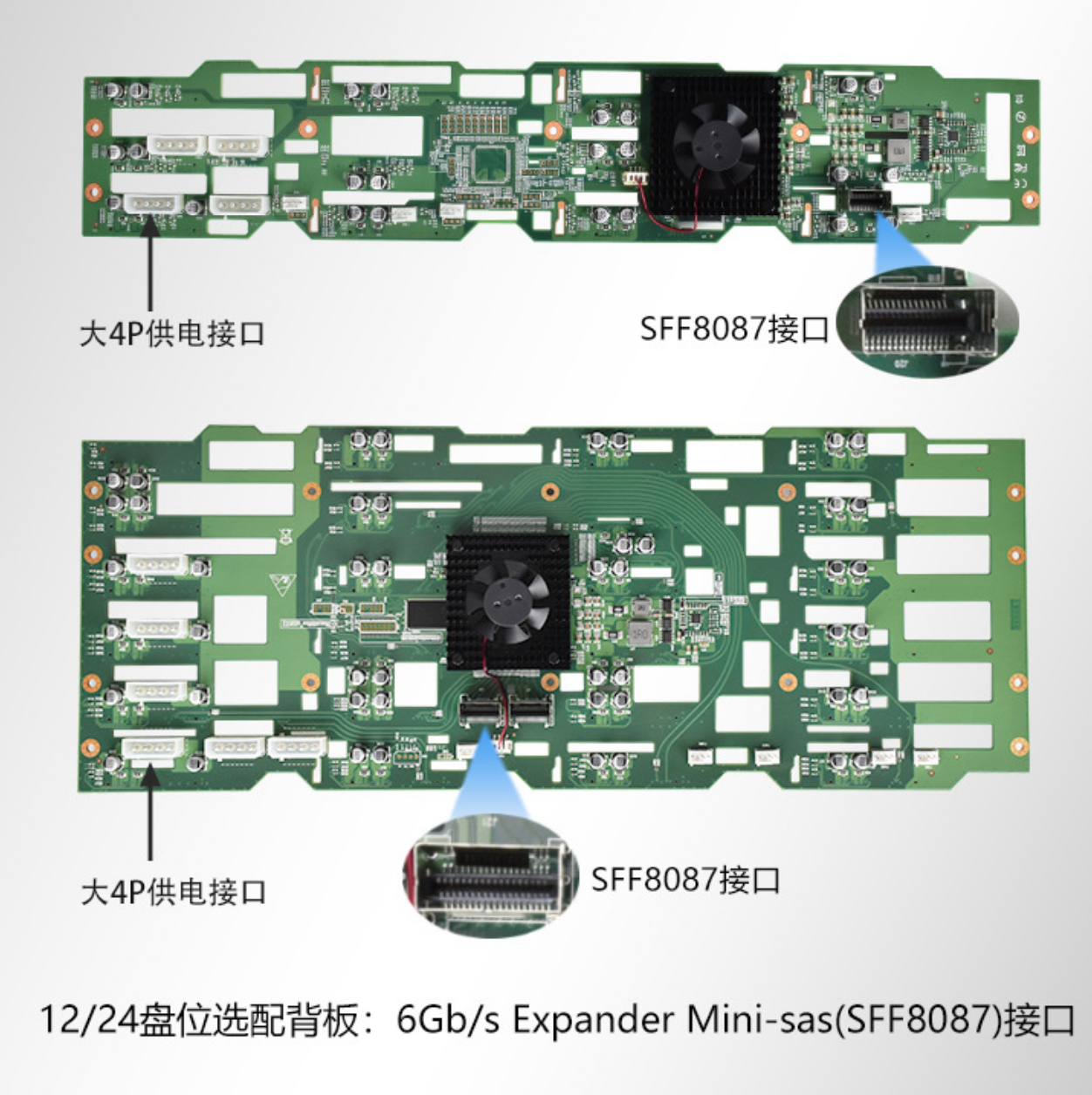

• Support the maximum number of hard drives can support 24* 3.5/2.5 -inch SATA hard disk
• Network interface Intel Gigabit Network Interface*2
• Power type type dedicated 1000W tower power supply
• The operating system supports Windows Server 2008 R2 SP1 (X64)
• Windows Server 2012 (x64)
• Red Hat Enterprise Linux 6.1 (X86/X64)

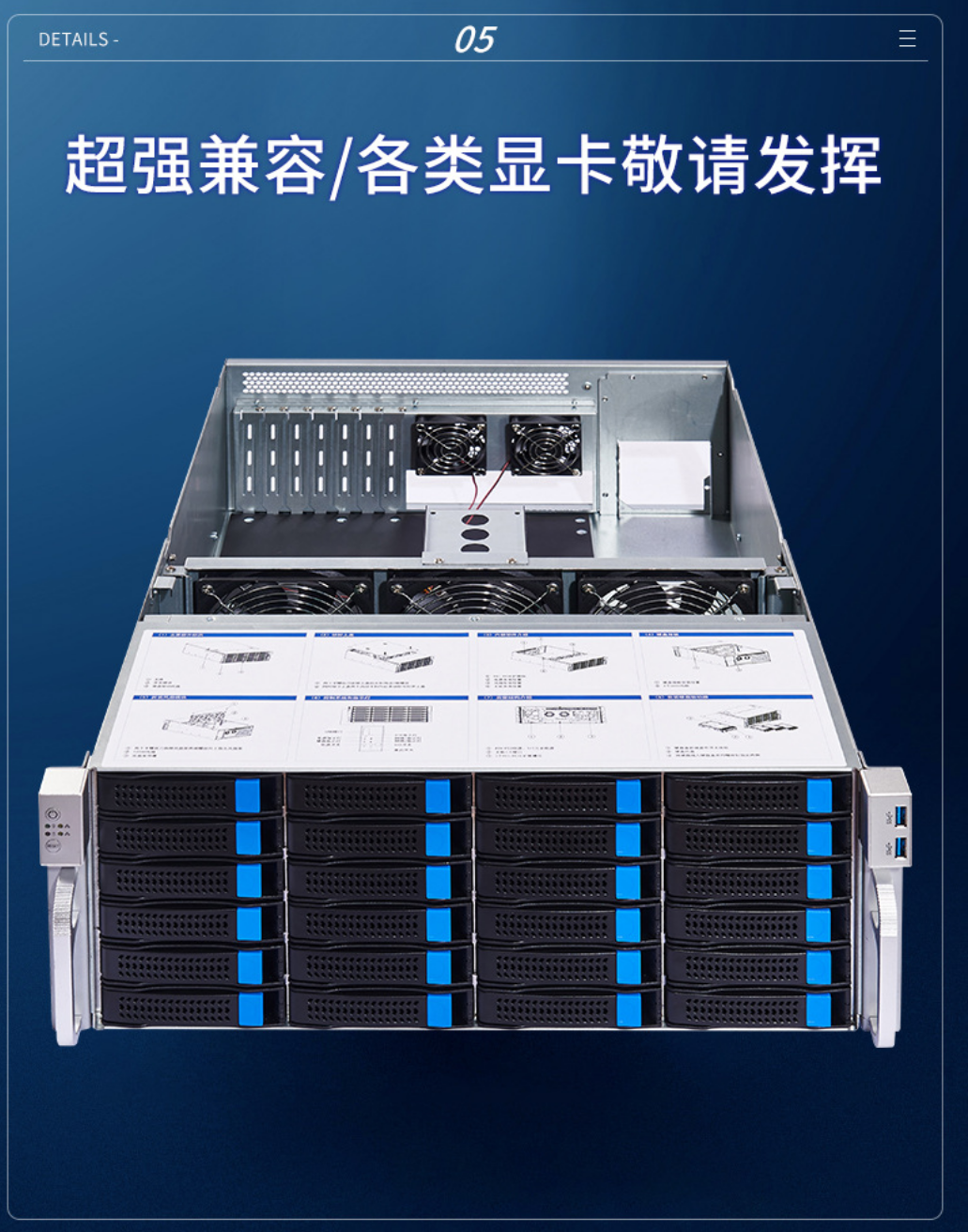

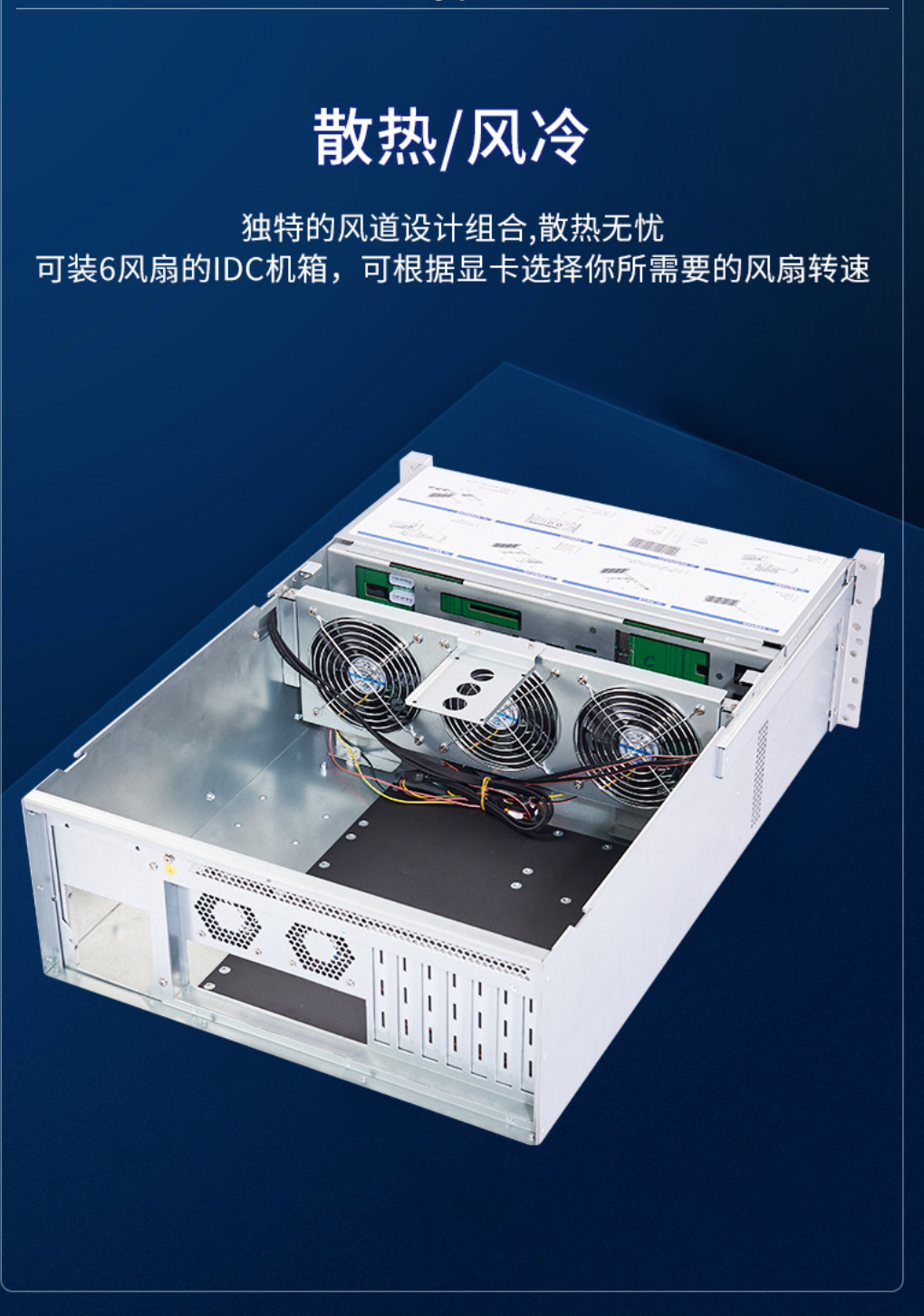

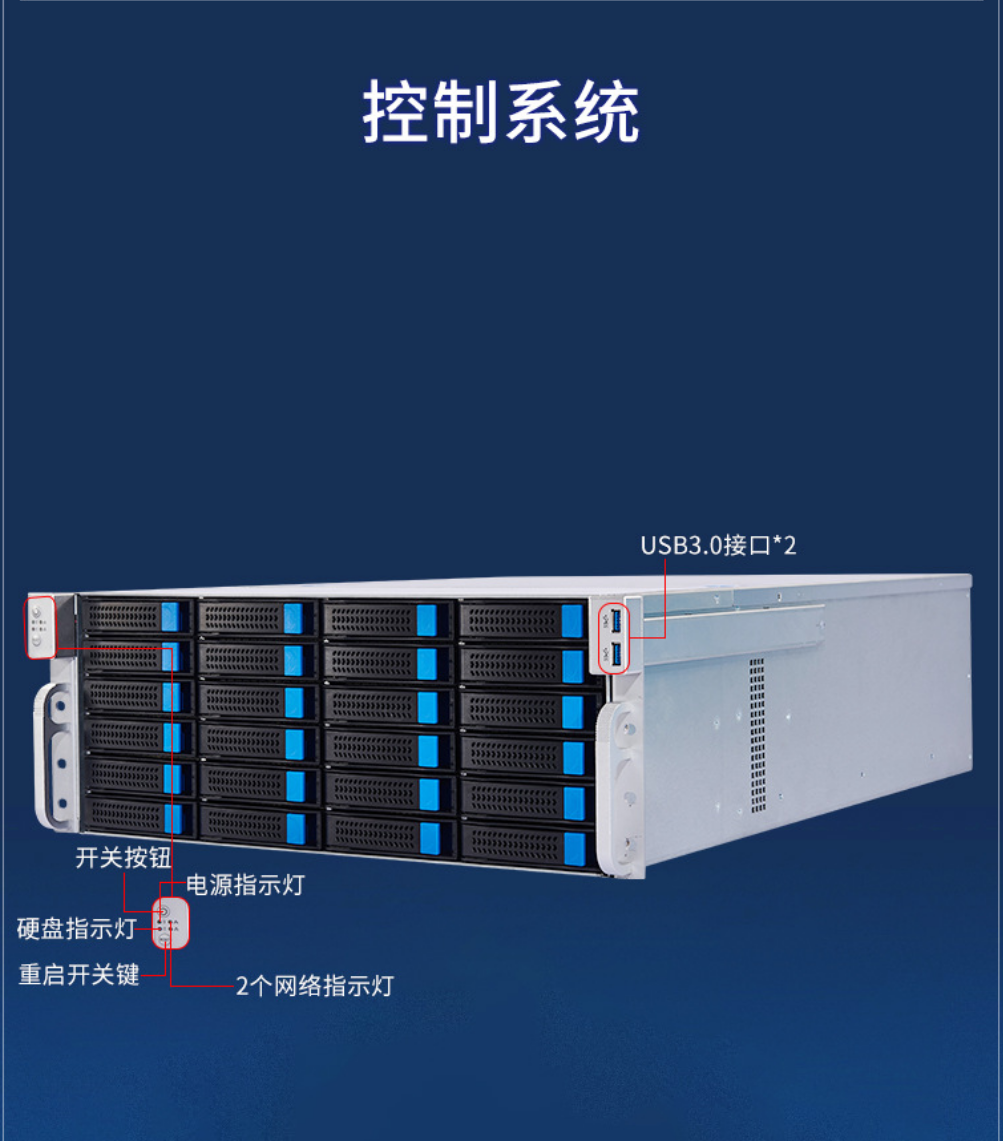

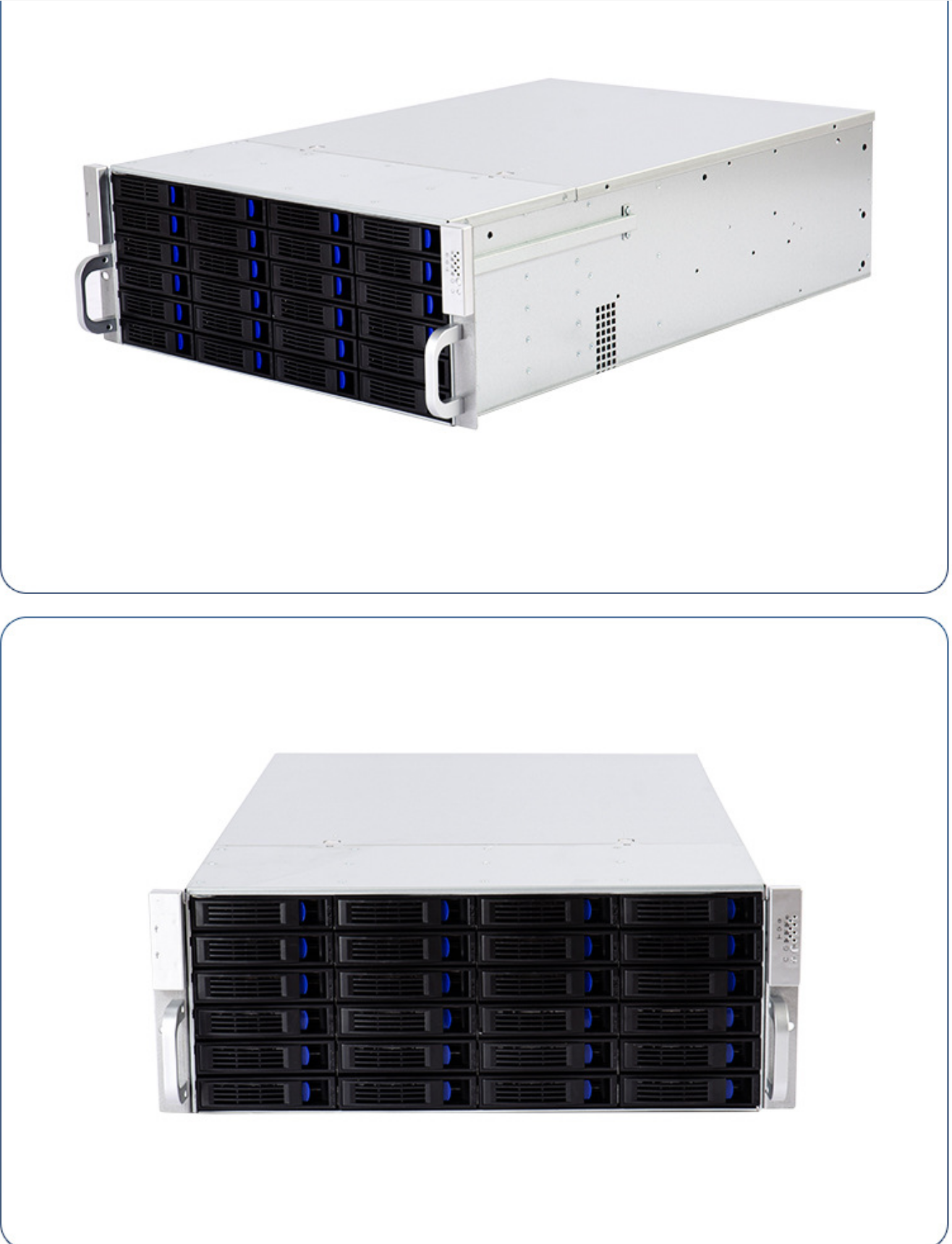

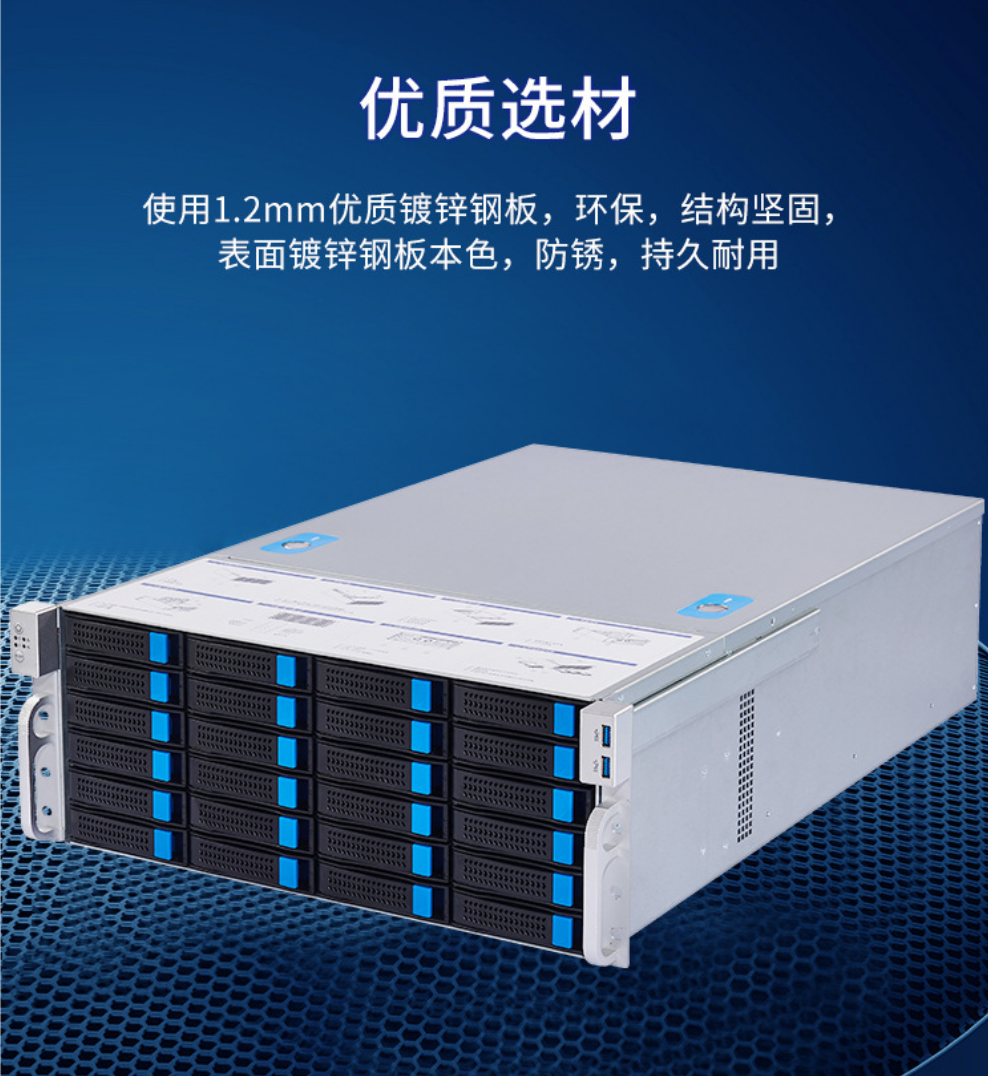

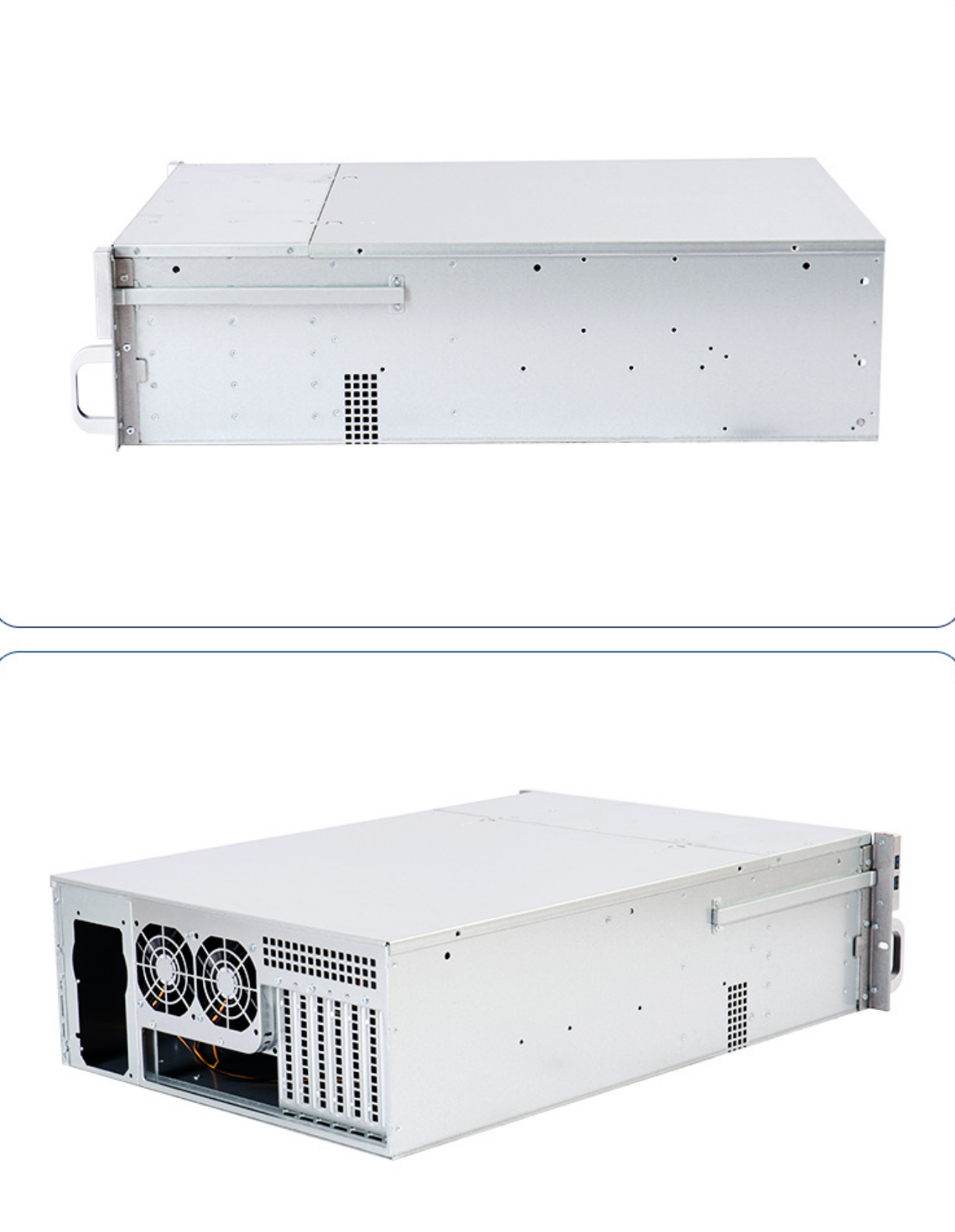

• Case 4u 24 disk hot plug out chassis
• Dimension 680mm * 480mm * 176mm (d * w * h)
• The working environment The temperature range of the working environment: 18 ~ 25 ° C. 
• The wetness range of the working environment: 45%~ 65%.
• Temperature change rate: <5 ℃/h must not be exposed. 
• Power voltage range: 220V ± 10V. 
• Power frequency range: 50Hz ± 0.5Hz. 
• Have a good ventilation, keep the temperature (wet) in the rack conforming to the working environment temperature (wet) range
• Anti -static, anti -dust
• Prepare UPS to prevent the software and hardware of the server -stop damage.
• Weight 24kg
• Three -year standard warranty service for after -sales service
